Description

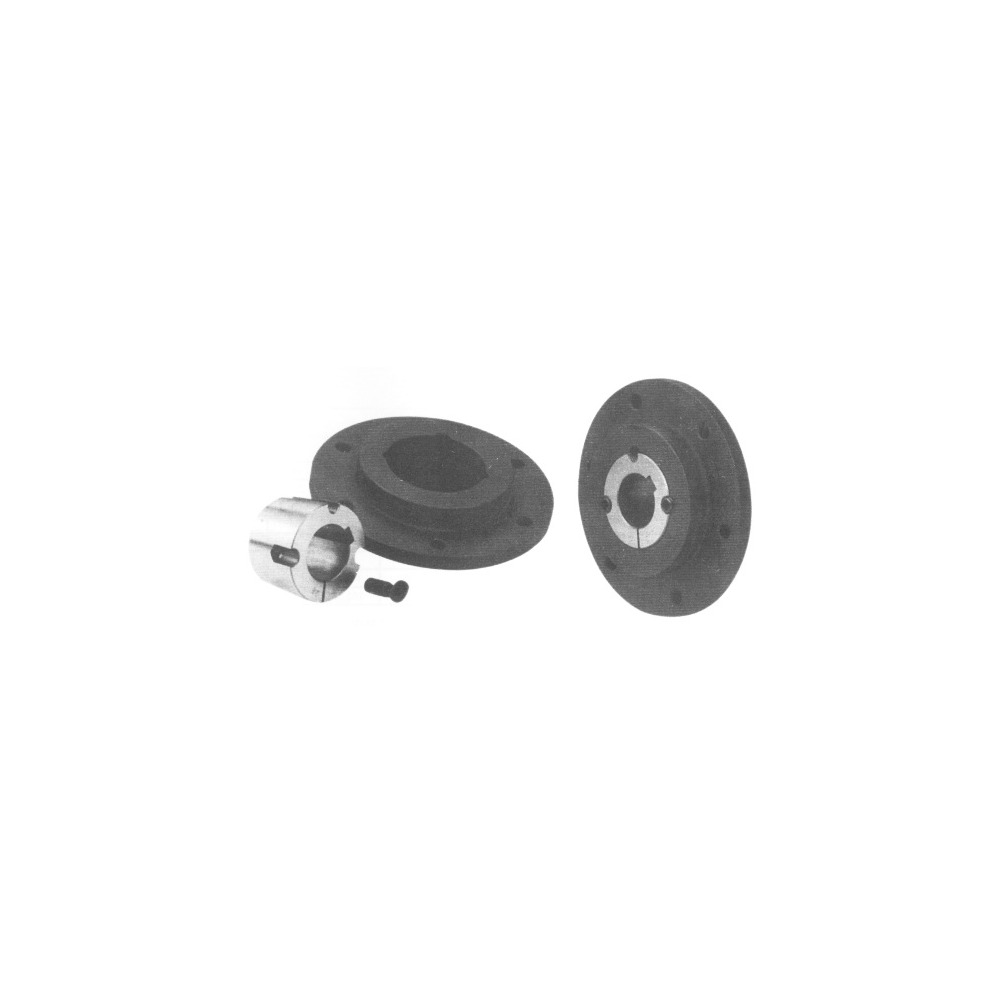

Bolt-on hub family for taper-bush mounting where a bolted interface is preferred.
| EP Model | Scope |
|---|---|
| EP-SM1200 | Included family/model reference |
| EP-SM1600 | Included family/model reference |
| EP-SM2000 | Included family/model reference |
| EP-SM2500 | Included family/model reference |
| EP-SM30-1 | Included family/model reference |
| EP-SM30-2 | Included family/model reference |
| EP-SM1210 | Included family/model reference |
| EP-SM1610 | Included family/model reference |
| EP-SM2012 | Included family/model reference |
| EP-SM2517 | Included family/model reference |
| EP-SM3020 | Included family/model reference |
Selection Rule

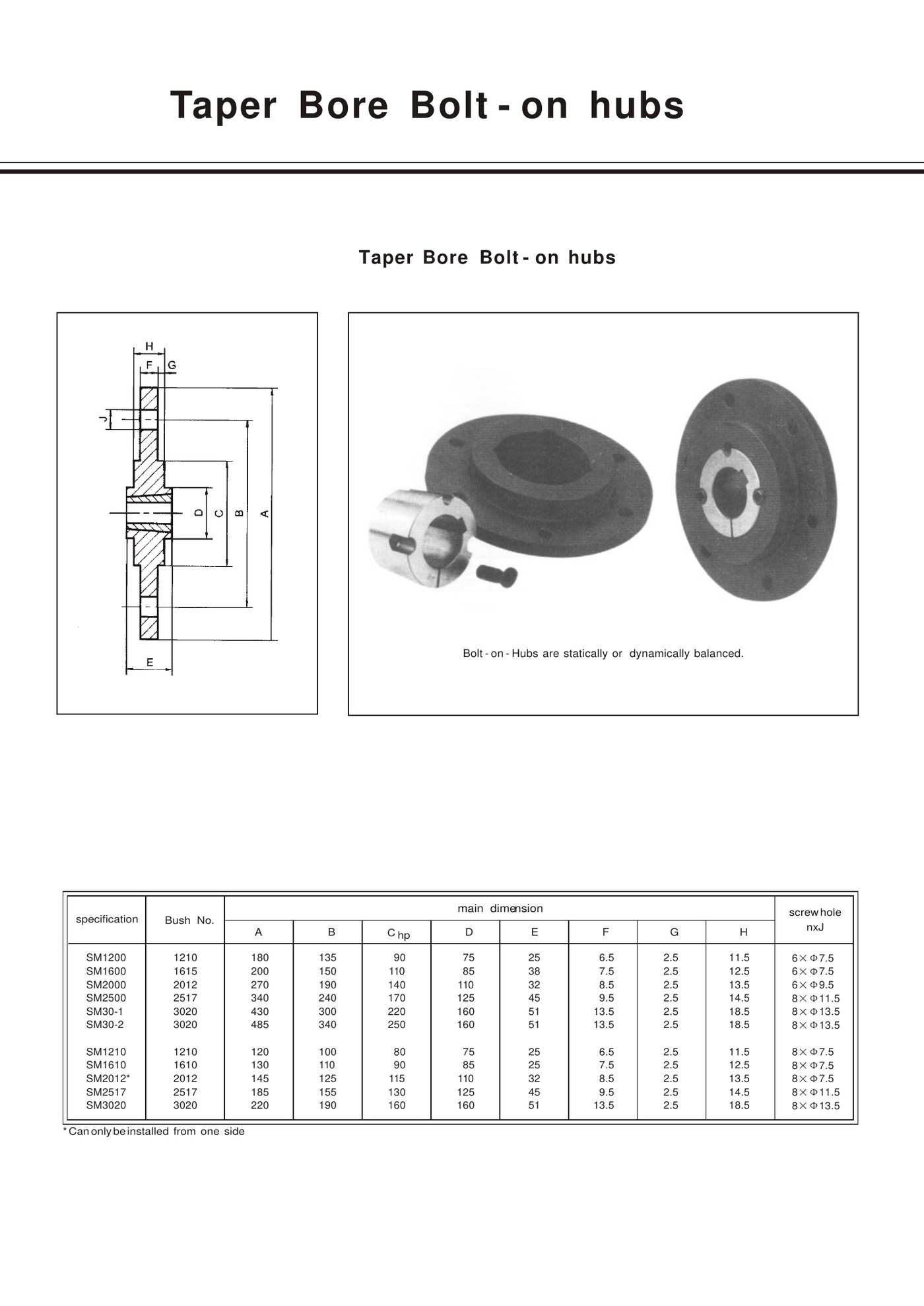

For EP-SM bolt-on hubs, check the matching bushing, bolt-hole pattern, mounting side and main dimensions shown in the technical sheet. Balance requirements belong to the complete rotating assembly and should be confirmed for the actual machine.
